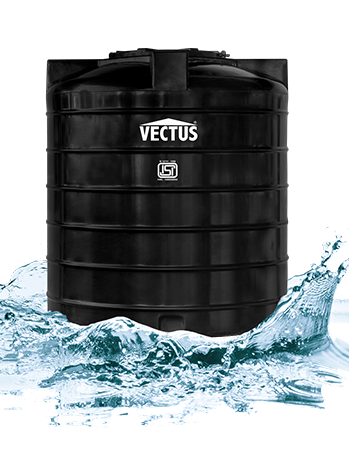

Vectus ISI is a superior quality Rotational Moulding water Tank conforming to IS 12701:1996 .
Polyethylene (PE) of Rotational Moulded Grade, which is duly stabilized with anti-oxidants is used as raw material for the manufacturing of the tank. The compound hence formed, provides protection against heat and oxidation of tanks. The nominal service temperature of Vectus ISI Tanks varies from 1 degree to 50 degree Celsius.
Since we use the conventional Rotational Moulding Technology for the manufacturing of these tanks, therefore, the finished product comes out to be stronger and more rigid as compared to other tanks in the market. Vectus ISI Tanks are available from 200 Liters to 10,000 Liters.
Capacity (Litres) |
Overall Diameter (mm) |
Overall Height (mm) |
Diameter of Manhole (mm) |
200 | 742 | 560 | 280 |
300 | 761 | 770 | 280 |
500 |
905 |
1000 |
400 |
700 |
1020 |
1045 |
400 |
1000 |
1127 |
1230 |
400 |
1500 |
1320 |
1410 |
400 |
2000 |
1400 |
1610 |
390 |
3000 |
1620 |
1890 |
460 |
5000 |
1846 |
2010 |
460 |
10000 |
2045 |
2800 |
460 |
Note:- There could be variations in specification due to continuous product development, All sizes and capacities are approximate.All sizes are in mm
