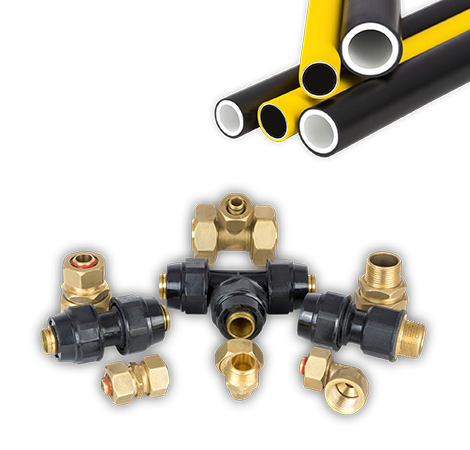

Composite Piping System

Vectus Industries Limited manufactures PE-AL-PE multi-layer Composite Piping Systems, which are composed of an aluminium core encased in an inner and outer layer of Polyethylene. All the layers in a composite pipe are permanently bonded together by intermediate adhesive layers. The level of thickness of the aluminium layer in Vectus Composite Pipes has been selected to meet compressive and flexural strength requirements. This helps to combine the advantages of metal and plastic pipes and eliminate the disadvantages of both materials at the same time. The aluminium core is absolutely diffusion tight and reliably prevents oxygen or gases from permeating into the pipe. It compensates and reduces snap-back forces and heat expansion with changes in temperature.

Vectus Black Composite Pipes are manufactured as per IS standard 15450:2004 while Yellow Composite Pipes as per ASTM F- 1282.

The available range of Composite Pipe & Fittings varies from 1014 to 4050. (These sizes are available in White/Orange/Blue colours also and will be manufactured as per the order)

The life span of these pipes is more than 50 years.

Advantages of PE layers
PE layers in Composite piping systems provide all the benefits of a plastic pipe which include:

  • Corrosion & scale resistance
  • Chemically inert
  • Smooth surface for better flow rate
  • Non-toxic & rust-free

Advantages of Adhesive layers

  • Perfectly bond the metal and plastic layers.
  • Absorb eventual shifting movements between the plastic and the metal layers; likely to occur in opposite directions.
  • Give the Composite pipe, advantages of a single component pipe.

Advantages of an Aluminium core

  • It acts as a permeation barrier against the entry of contaminants.
  • It limits oxygen permeability to an absolute zero.
  • It provides mechanical resistance to deformation.
  • Restricts expansion or contraction which could occur due to a change in temperature.



Pressure Table for Composite pipes
Specification (mm) Minimum Burst Pressure (Mpa) Min. Ring Strength (N) Test Pressure at 20°C (Mpa) Test Pressure at 60°C (Mpa) Working Pressure Working  temperature (°C)
1014 7 2100 3.00 2.50 1 - 40° to + 95°
1216 6 2100 3.00 2.50 1 - 40° to + 95°
1620 5 2400 2.70 2.50 1 - 40° to + 95°
2025 4 2400 2.60 2.50 1 - 40° to + 95°
2532 4 2700 2.30 2.10 1 - 40° to + 95°
3240 3.5 2700 2.20 2.00 1 - 40° to + 95°
4050 3.5 2700 2.10 1.90 1 - 40° to + 95°
  • Thermal Conductivity: The Thermal conductivity of a Vectus Composite Pipe is 0.45 W/m-K, about 1/100 than that of a steel pipe, but only several times higher than that of insulation material.
  • Chemical Resistance: The inside and outside Polyethylene is a kind of symmetrical & non-polar material with a stable characteristic. At normal temperature, it does not dissolve in any solution and is resistant against various kinds of acids, alkali & salts.
  • Hygienic Property: Vectus composite piping systems are hygienic, toxic-free, rust-free & resist the growth of micro-organisms preventing contamination of water. As medical & oxygen supply pipes, they are absolutely safe & the purity of the media of these pipes is maintained at all times.
  • Burning Resistance: The PE- AL-PE composite structure gives the composite pipes a much better burning resistance as compared to any other Polyethylene pipes. In the test, the burning resistance of the Vectus Composite Pipes reached grade BL & GB 8624 stipulations for wire & cable conduit plastic materials.
  • Hydraulic Function: The roughness coefficient of a Vectus Composite Pipe is 0.007. The inside wall is very smooth, scale-free & low flow resistance. This makes the pipes ideal for carrying fluids. Due to the hard but flexible composite structure, the lashing pressure is quickly eliminated, thus no disturbing sound occurs.
  • Installation: Vectus Composite pipes are bendable but never spring back and do not deform under pressure.

Composite Black Pipe

Composite Black Pipe

Composite Yellow Pipe

Composite Yellow Pipe

Polymer Equal Straight Union

Polymer Equal Straight Union

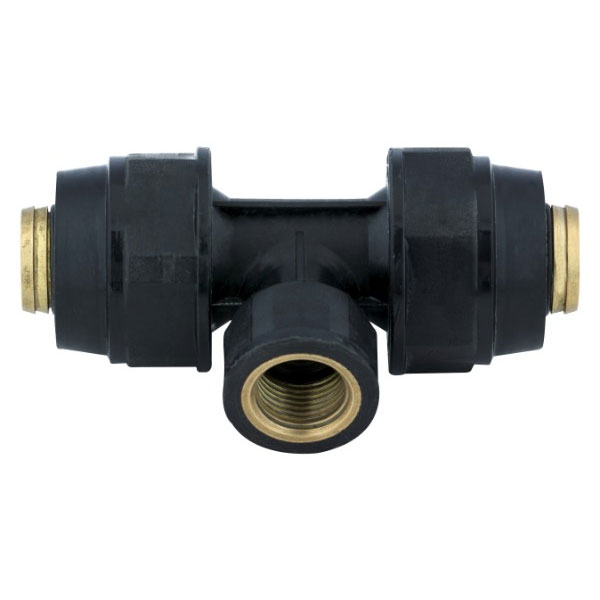

Polymer Equal Tee

Polymer Equal Tee

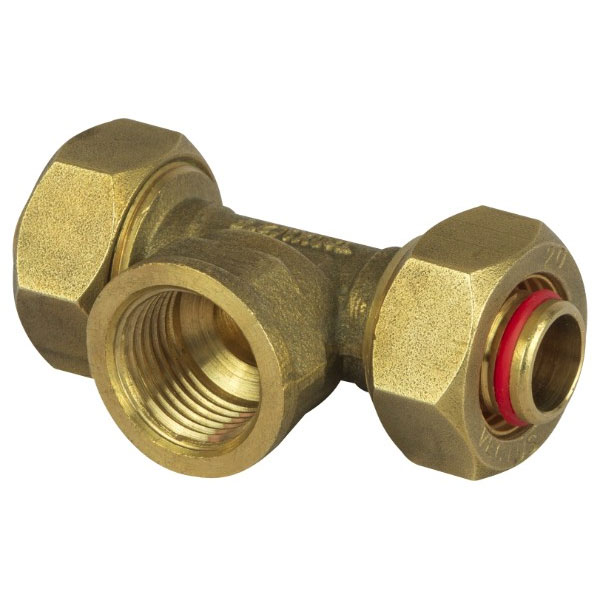

Polymer Female Elbow

Polymer Female Elbow

Polymer Female Straight Union

Polymer Female Straight Union

Polymer Female Tee

Polymer Female Tee

Polymer Male Straight Plastic Union

Polymer Male Straight Plastic Union

Polymer Male Straight Union

Polymer Male Straight Union

Polymer Equal Elbow

Polymer Equal Elbow

Polymer Unequal Straight Union

Polymer Unequal Straight Union

Polymer Unequal Elbow

Polymer Unequal Elbow

Polymer Unequal Tee

Polymer Unequal Tee

Threaded End Plug

Threaded End Plug

Equal Straight Union

Equal Straight Union

Equal Tee

Equal Tee

Equal Elbow

Equal Elbow

Female Elbow

Female Elbow

Female Straight Union

Female Straight Union

Female Tee

Female Tee

Male Elbow

Male Elbow

Male Straight Union

Male Straight Union

Unequal Straight Union

Unequal Straight Union

Unequal Elbow

Unequal Elbow

Unequal Tee

Unequal Tee

Wall Plated Female Elbow

Wall Plated Female Elbow

Male Tee

Male Tee

Cross Tee

Cross Tee

Male Gas Nozzle Valve

Male Gas Nozzle Valve

Female Gas Nozzle Valve

Female Gas Nozzle Valve

Equal Valve

Equal Valve

Male Valve

Male Valve

Female Valve

Female Valve

Reamer

Reamer

Seven Size Rounding Tool

Seven Size Rounding Tool

Deburring Tool

Deburring Tool

Cutter

Cutter
